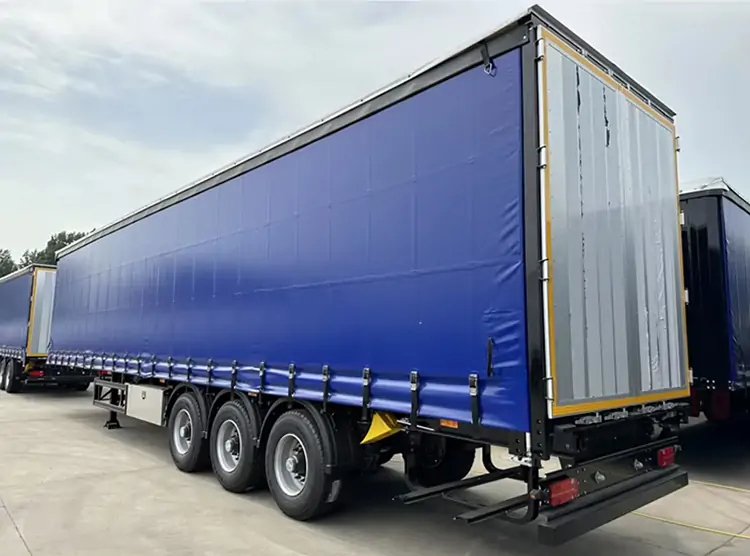

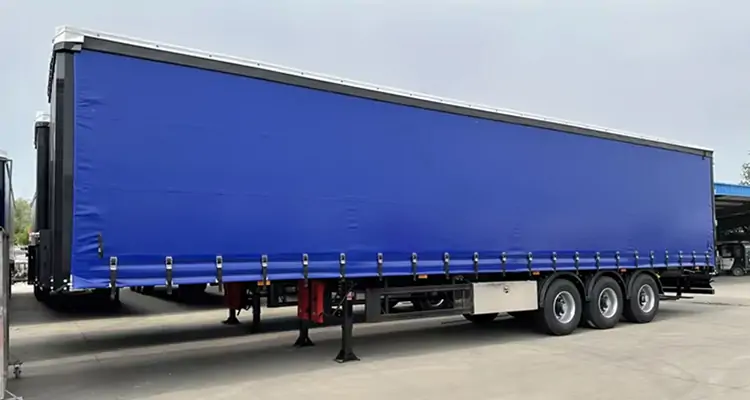

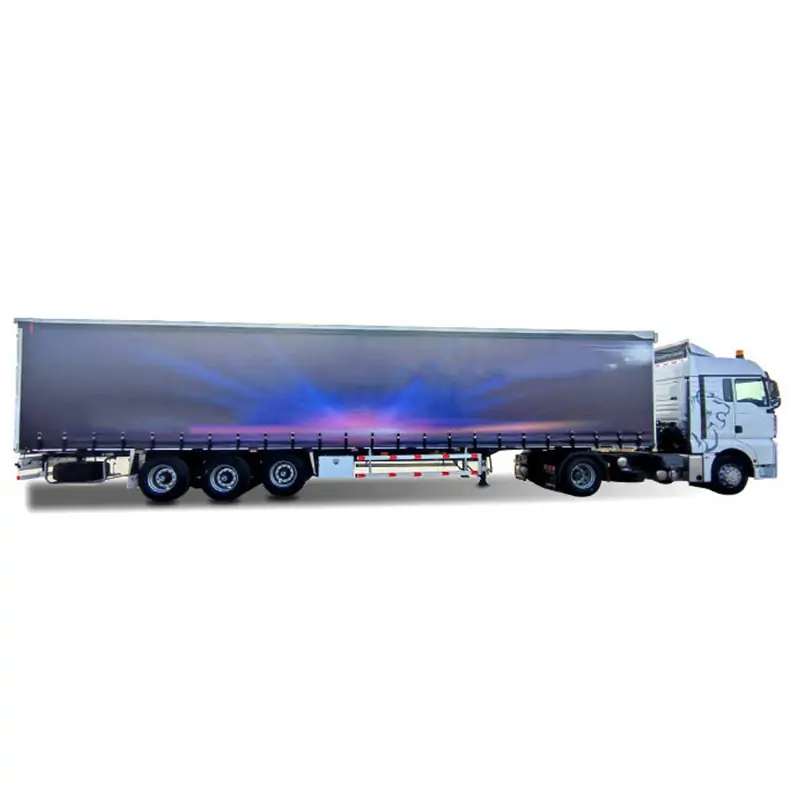

Brand Double Train Curtain Super Link Curtain Side Trailers for Sale Steel Truck Trailers Semi-trailer 3 Axle 40-50T

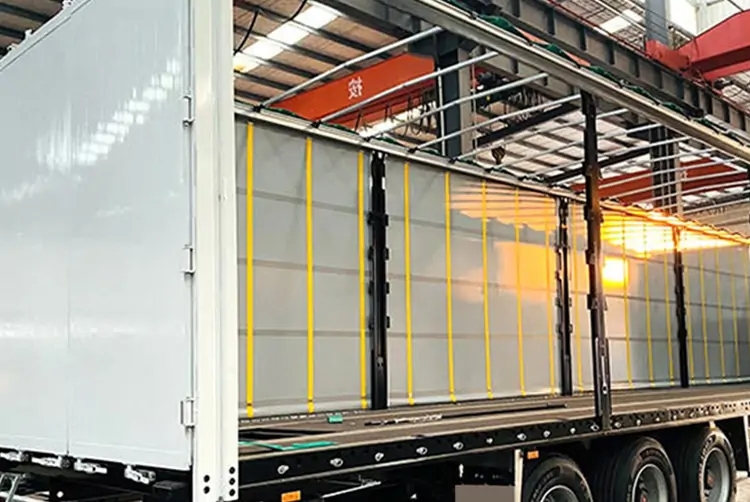

The chassis, the column, the beam, and the curtain form the main body of the side curtain, and the curtains on both sides can be quickly opened, and the loading and unloading of the goods are very convenient.
Due to its efficient transportation efficiency and multi-functional solid-state equipment, the side curtain car has great advantages in six transportation fields such as multimodal transport, household appliances, beverages, paper rolls, auto parts, plates, and packaged goods
Core Components
MT700 steel: Ultra-high strength (≥700MPa), lightweight, and durable for栏板 (side panel) trailers.

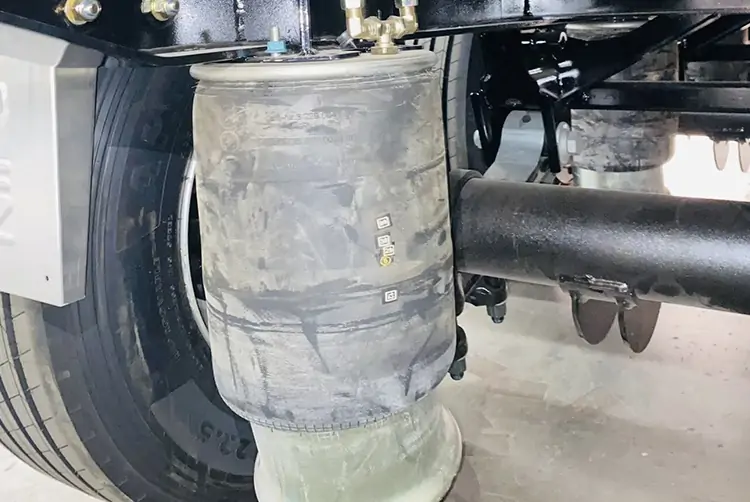

The Air Suspenstion: Superior shock absorption, adjustable loading height, reduced cargo damage, weight savings, fuel efficiency, tire protection, enhanced stability, and lower maintenance.
The jsot: Reliable coupling, heavy-duty support, durable construction, global brand trust, easy maintenance, and enhanced safety for curtain side trailers.
| Overall Dimension (Lx W x H)(mm) | 13900*2500*4000 （customized） |
| Tare Weight | 7000KG |
| Loading Weight | 40000KG |
| Total Weight | 50000KG |
| The material of Main beam | The height of the beam is 500mm, |
| upper plate is14mm | |
| down plate is 16mm | |
| middle plate is 8mm | |
| Side Beam | 18mm |
| Platform plate | 3mm Diamond plate |
| Curtain Height | 2000mm |
| Slider | Manual operation |
| Axle Brand | FuWa、BPW、Brand |
| Wheelbase | 7450*1310*1310mm |
| Suspension system | Mechanical Suspension/Air Suspension |
| Steel Spring | 10/10/10 leaf spring suspension |
| Tire Type | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20/385/65R22.5 |
| Traction Pin | 2″ or 3.5″, JOST |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 set |
| Landing Gear | JOST, 28 TON |
| Painting | Color as customer’s requirement |
