Heavy Duty Customized New Tandem Dump Trailer Tow Behind Side Tipper Dump Trailer for Sale
2/3/4 Axles 60 100ton Hydraulic Cylinder Trailer Tipper Dumping Side Dump Trucks Trailers Epa Rear Dump Trailer
Core Components
With effective unloading ability, Dump Semi Trailer is the best to transport bulk granular cargo such as coal, ore, construction materials, etc.
The box body is made of high-strength cold corrugated steel plate. The height of the box body can be high for large loading volume. With multi-cylinder lifting and self-rescue cylinders, dump trailers can load heavy cargoes. We customize dump trailer with different size and appearance.
the side tipper trailer is also utilized in agricultural applications. It can transport and unload agricultural produce such as grain or fertilizer with ease. This enables farmers to efficiently move their goods from one location to another, saving valuable time and resources.
With effective unloading ability, Dump Semi Trailer is the best to transport bulk granular cargo such as coal, ore, construction materials, etc.
The box body is made of high-strength cold corrugated steel plate. The height of the box body can be high for large loading volume. With multi-cylinder lifting and self-rescue cylinders, dump trailers can load heavy cargoes. We customize dump trailer with different size and appearance.
Core Components
| Name | Side Dump Semi Trailer |
| Outside Dimension(L*W*H) (mm) | 10000-14000*2550*2900mm (customizable) |
| Max Loading Capacity (kg) | 30000-100000 （customizable) |
| Tare Weight | 7-9 Tons |

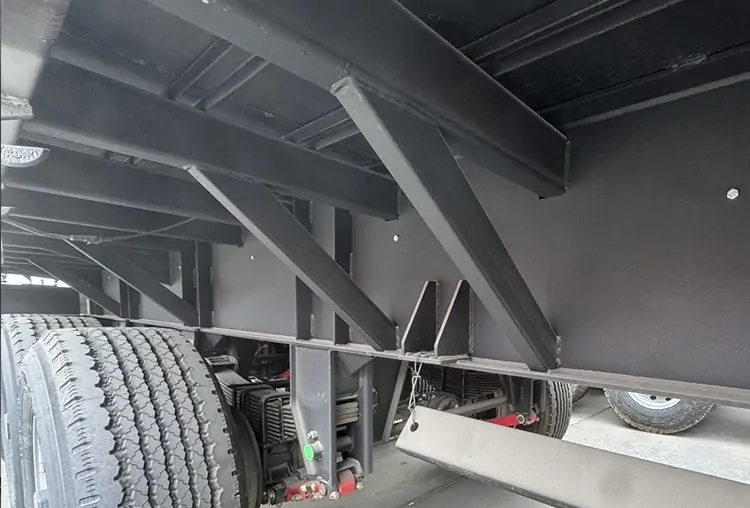

| Main Beam | Q345B manganese plates, automaticsubmerged arc welded |
| Upper:16mm, Lower:16mm, Mid web:8mm | |
| The height of beam:500mm, | |
| Floor | Steel sheet 4mm thickness or diamond plate |
| Tyre Specifications | 11.00R20/12R22.5 |
| Rim | 8.0/9.0*12/16 pieces |
| Axle | 13 Tons Fuwa / BPW/JOZOTG/Other |
| Leaf-spring | 90mm*13/16mm*10 pieces |
| Suspension | Mechanical/ Air suspension |
| King Pin | #50(2″)/#90(3.5″), JOST/Other Brand |
| Landing Gear | 28000 kg,JOST |
| Spare Wheel Carrier | One set of spare wheel carrier |
| Electrical System | 24V, 7core socket, lights according toEuropean standards. |

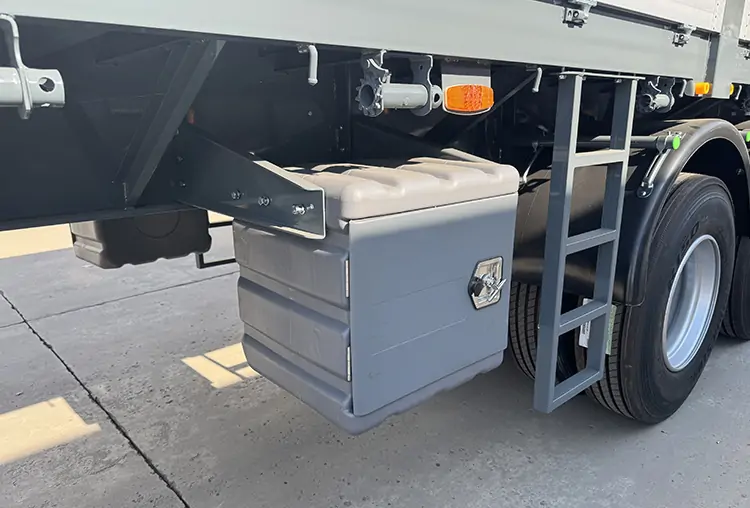

| Tool Box | Steel/aluminum(1+0.5m) |
