Factory Direct 3 Axle 50 Ton Side Dump Truck Trailer

The vehicle body is made of high-quality high-strength steel from Shanghai Baosteel and is professionally designed with a reasonable structure, beautiful appearance and strong bearing capacity.

Product Details
Parameter
FAQs

Factory Direct 3 Axle 50 Ton 80ton 45cubic Meters Side Wall Semi Trailer 45 Cubic Meters Capacity Side Dump Cargo Trailer

Factory Direct 3 Axle 50 Ton Side Dump Truck Trailer-flatbed trailer_skeletal trailer_low bed trailer_dump trailer_cargo trailer-Shandong Jiuzhou Automobile Manufacturing Co., Ltd.

Hydraulic 3 Axle Dumper Semi Side Dump Truck Trailer Trailer Tipping Tipper Semi Trucks Grapple Dump Trailer

Core Components

Advanced multi-axle suspension system ensures optimal load distribution and ride stability.

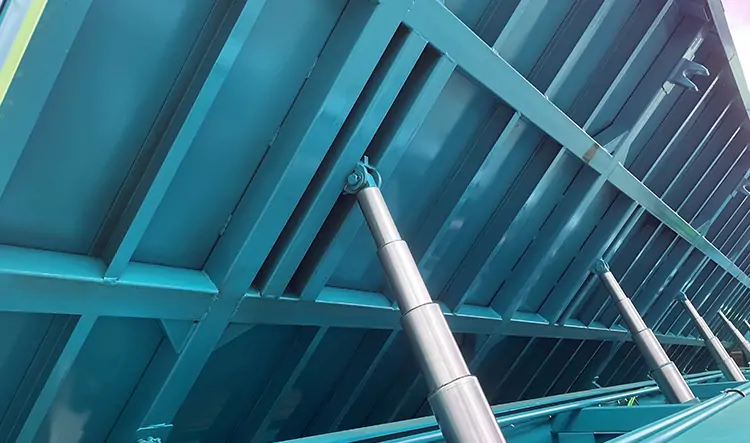

Durable telescopic hydraulic rams provide reliable lifting and lowering for efficient operations.

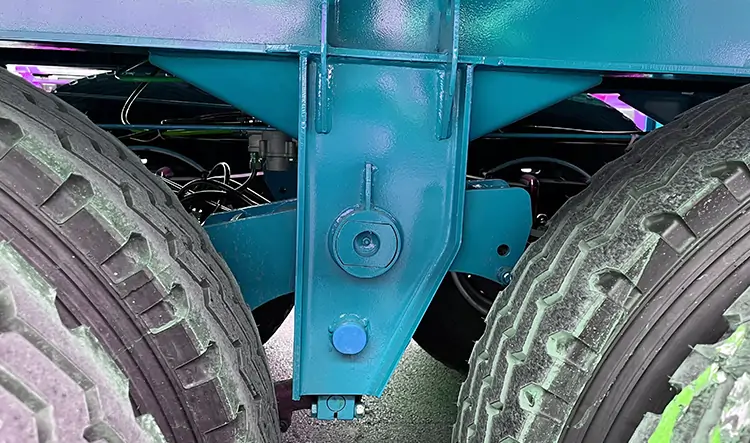

Heavy-duty mounting brackets ensure secure attachment and enhance structural integrity under stress.

Core Components

Name	Side Dump Semi Trailer
Outside Dimension(LWH) (mm)	10000-1400025502900mm (customizable)
Max Loading Capacity (kg)	30000-100000 （customizable)
Tare Weight	7-9 Tons
Main Beam	Q345B manganese plates, automaticsubmerged arc welded
	Upper:16mm, Lower:16mm, Mid web:8mm
	The height of beam:500mm,
Floor	Steel sheet 4mm thickness or diamond plate
Tyre Specifications	11.00R20/12R22.5
Rim	8.0/9.0*12/16 pieces
Axle	13 Tons Fuwa / BPW/JOZOTG/Other
Leaf-spring	90mm13/16mm10 pieces
Suspension	Mechanical/ Air suspension
King Pin	#50(2″)/#90(3.5″), JOST/Other Brand
Landing Gear	28000 kg,JOST
Spare Wheel Carrier	One set of spare wheel carrier
Electrical System	24V, 7core socket, lights according toEuropean standards.
Tool Box	Steel/aluminum(1+0.5m)

Side-dump semi-trailers are ideal for transporting bulk materials such as sand, gravel, coal, ore, and grain. Their side-dump design allows for quick unloading, significantly improving work efficiency, making them a highly effective tool for construction sites and logistics transportation!

Our side-dump semi-trailers are equipped with a hydraulic side-dump system, which ensures fast and easy unloading. The entire unloading process can be completed in just a few minutes, saving both time and labor costs.

Side-dump semi-trailers are made of high-strength steel and have a maximum load capacity of 50 tons, enabling them to handle heavy bulk materials with ease and ensuring safe and reliable transportation every time.

Absolutely! The side-dump design of our semi-trailers is particularly suitable for operation in narrow or confined spaces. Unloading can be completed without requiring additional space, making them an ideal choice for construction sites and mining areas.

We offer a lifetime warranty on the main beam and a lifetime warranty on the hydraulic system. Our after-sales team is available 24/7 to resolve any issues promptly, ensuring your transportation operations run smoothly and worry-free!
