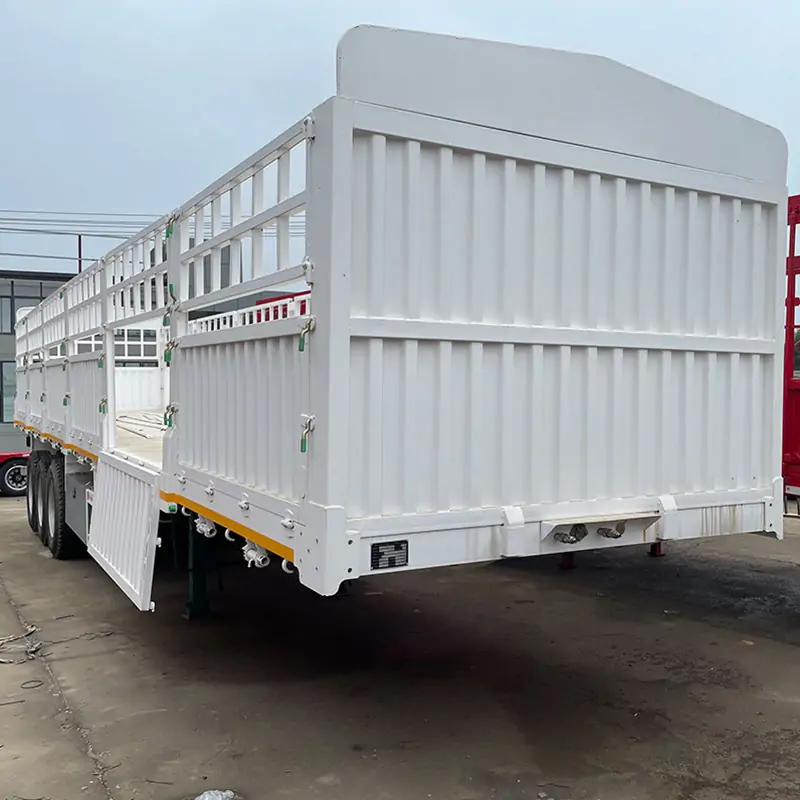

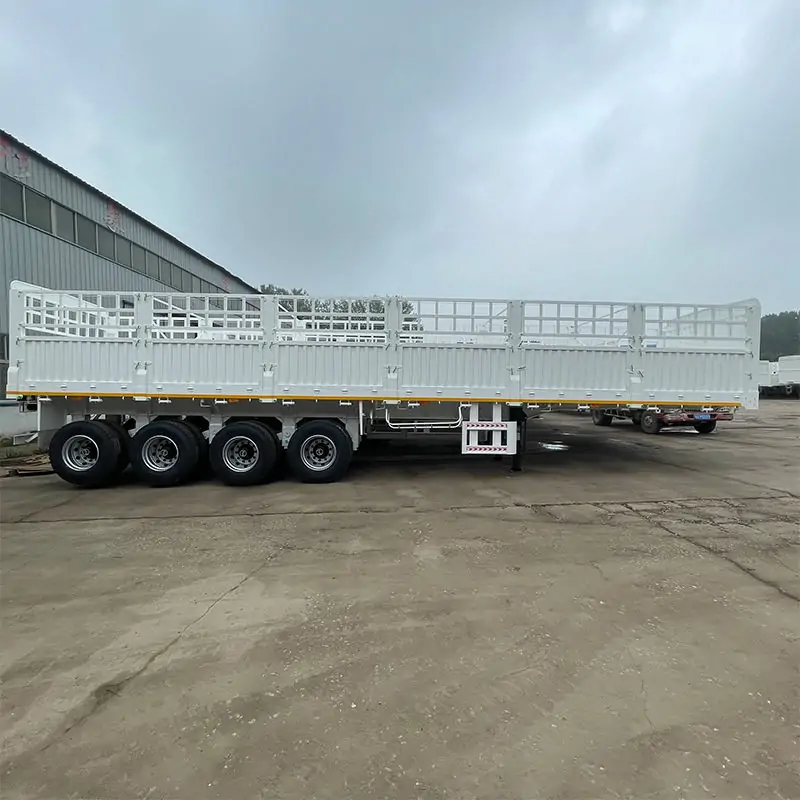

New 2025 Cheap Price 3 4 Axles 50tons Fence Cargo Semi Trailer

2025 New 4 Axle 12 Tire Semi Trailer Load 40-60 Ton Drawbar Fence with Dropside Steel Stock Cargo Box Warehouse Truck Trailer

Core Components

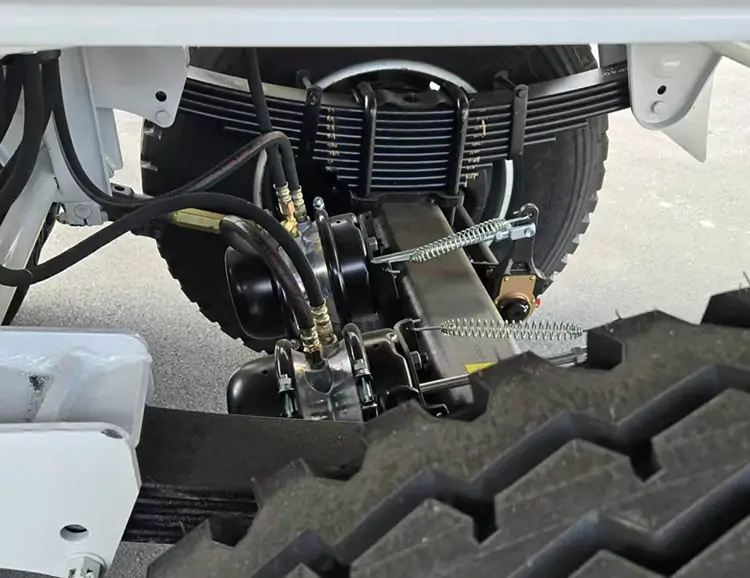

The simple structure of mechanical suspension makes it highly reliable and durable. It has fewer components compared to some complex suspensions, reducing the probability of failure and requiring less maintenance over its service life.

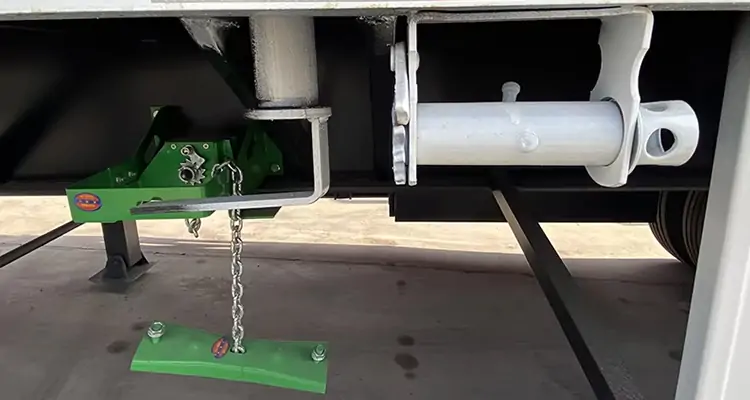

This device features a user – friendly design. The chain – operated mechanism allows the operator to easily lift or lower the front end of the semi – trailer with minimal effort, improving work efficiency during coupling and decoupling operations.

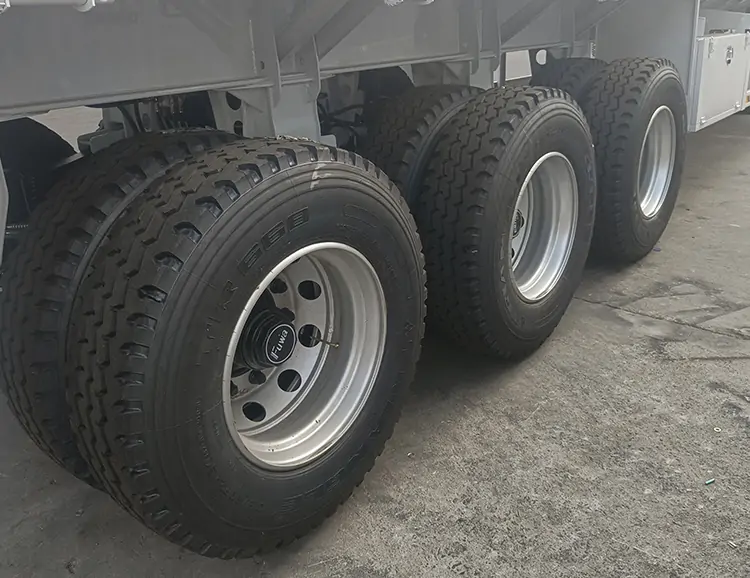

The load distribution among multiple tires helps to reduce the wear on each individual tire. This not only extends the service life of the tires but also ensures consistent performance and safety throughout their usage, reducing the frequency of tire replacements and maintenance costs.

Production Flowchart

Design Drawings

| Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
| Load Capacity(T) | ≤60T |
| Axle | 3 axles, 13T/16T, FUWA/BPW Brand |
| Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
| Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
| King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
| Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
| Bottom Plate is 16mm; Material: Q345B Steel | |
| Side beam | 16mm or 18mm steel channel(material: Q235steel) |
| Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
| Valve | WABCO valve |
| Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
We are 38 years manufacturer in Linyi, Shandong, China, since 1987, welcome to our factory. and we are the pioneer of china light-weight trailer. welcome to our factory for real inspection factory, we also want to looking for agent in your local, just feel free to contact me for further communication.
Our annual capacity is over 20000-40000 sets, 1-300 sets need aOur annual capacity is over 20000-40000 sets, 1-300 sets need about 7-15 days, fast production time, don’t waste your time and not delay to make profit for customer.
Factory has a advantage for both price and quality, it depends customer’s requirements, standard model or custom made, parts of brand etc. just let me know your requirements now, send inquiry, just feel free to contact with me for more information, I’d like to help you.
Our sales value in China domestic is top2, and famous for our good reputation, also because our good quality, service for over 1000000 users, we keep the concept of QUALITY IS LIFE, more strong, more stable, more safe?
