2025 Extra-Large Load Capacity Brand New 2/3/4 Axle Transport Trailer Steel Material Fence Semi-Trailer for Cargo Transport
2025 New 4 Axle 12 Tire Semi Trailer Load 40-60 Ton Drawbar Fence with Dropside Steel Stock Cargo Box Warehouse Truck Trailer
Core Components

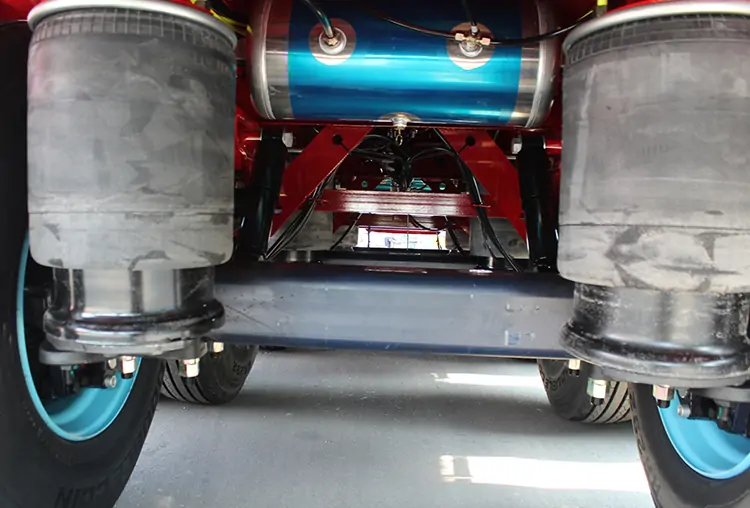

Air suspension provides excellent vibration isolation, ensuring a smooth and stable ride by automatically adapting to varying road conditions and vehicle loads. It also helps protect fragile cargo from damage due to excessive jolts.

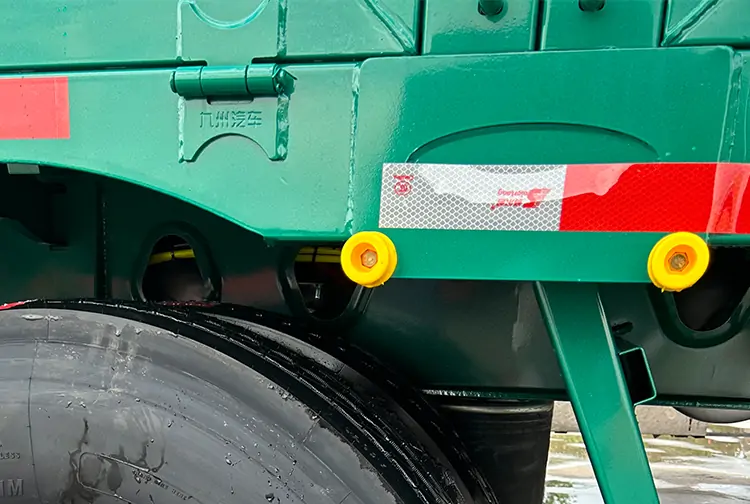

The yellow bolts stand out visually, facilitating quick identification and inspection during maintenance, which enhances work efficiency and ensures the reliability of connections.

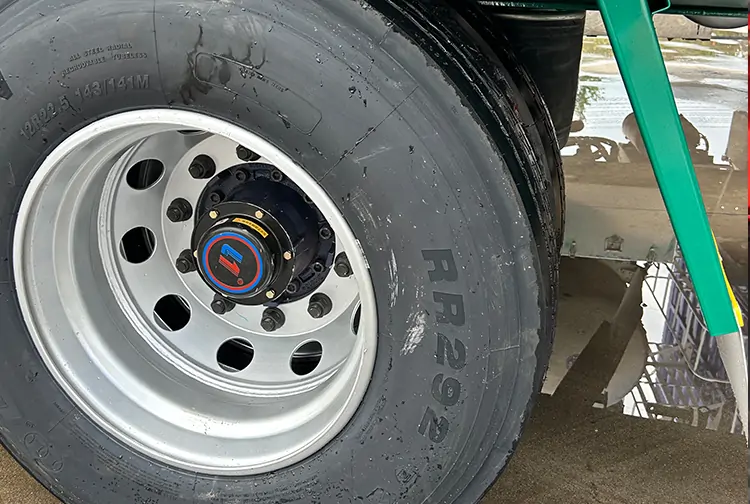

Fuwa axle’s robust design perfectly supports the tire, enhancing load – bearing capacity and durability.
Production Flowchart
Design Drawings
| Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
| Load Capacity(T) | ≤60T |
| Axle | 3 axles, 13T/16T, FUWA/BPW Brand |
| Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
| Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
| King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
| Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
| Bottom Plate is 16mm; Material: Q345B Steel | |
| Side beam | 16mm or 18mm steel channel(material: Q235steel) |
| Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
| Valve | WABCO valve |
| Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
