Core Components

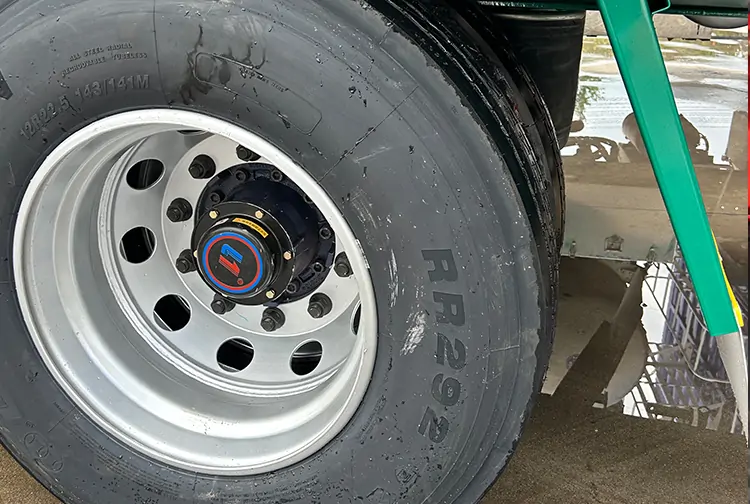

The heavy – duty wheel hub assembly with a high – precision bearing ensures smooth rotation and excellent load – bearing performance, reducing maintenance costs for the flower fence trailer.

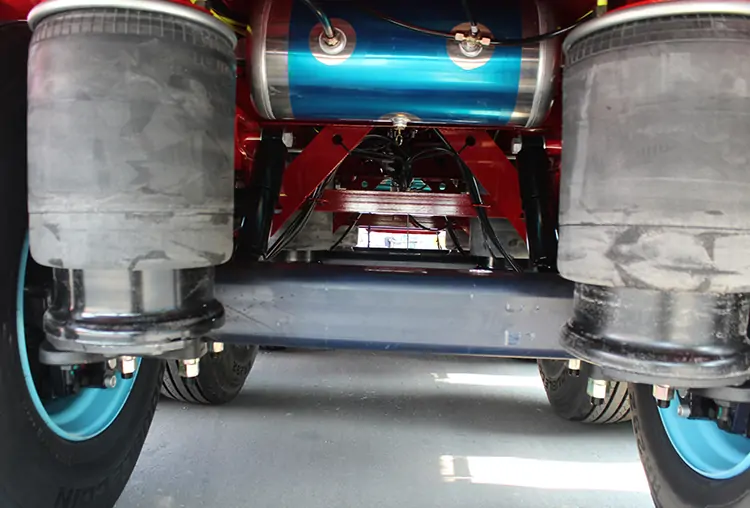

The optimized air suspension and air tank layout effectively absorbs shocks and ensures stable air pressure for braking, enhancing overall safety and ride comfort during transportation.

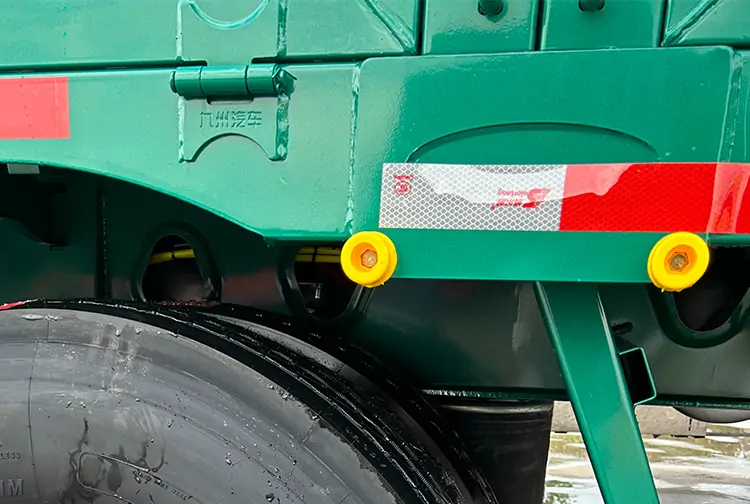

The reflective warning labels on the side of the trailer enhance visibility at night or in low – light conditions, improving safety during road travel and parking operations.
Production Flowchart
Design Drawings
| Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
| Load Capacity(T) | ≤60T |
| Axle | 3 axles, 13T/16T, FUWA/BPW Brand |
| Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
| Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
| Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
| King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
| Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
| Bottom Plate is 16mm; Material: Q345B Steel | |
| Side beam | 16mm or 18mm steel channel(material: Q235steel) |
| Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
| Valve | WABCO valve |
| Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
