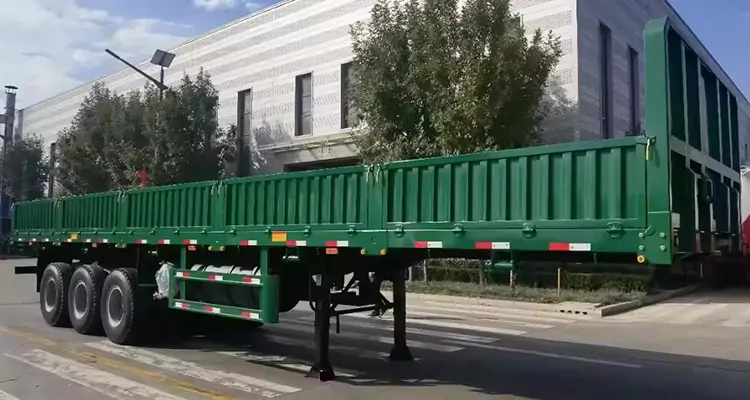

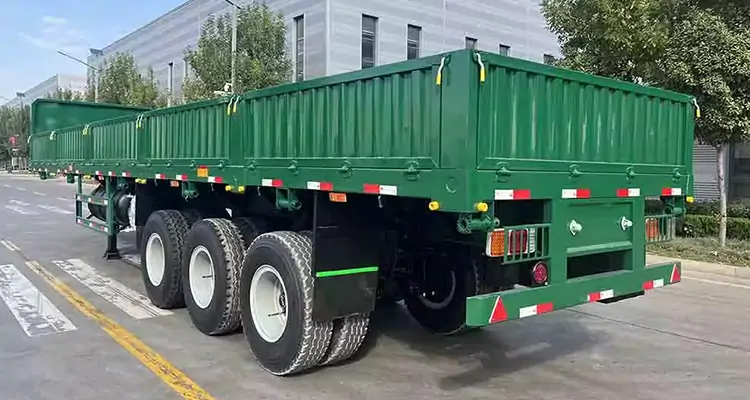

3-Axle Steel Enclosed Flatbed Semi Trailer for Bulk Goods Transport Side Wall Semi-Trailer
The side wall trailer use to load a wide range of products and materials, like sand, bags, poultry etc. Also the some bulk cargo, very widely used in the transportation industry. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side 3 axle cargo trailer can be added with a container turn lock to transport the container.
Core Components

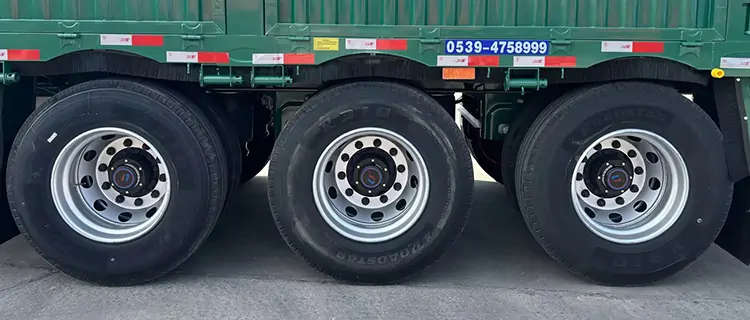

Dual tires distribute weight more evenly, enhancing stability and increasing the semi-trailer’s load-carrying capacity.

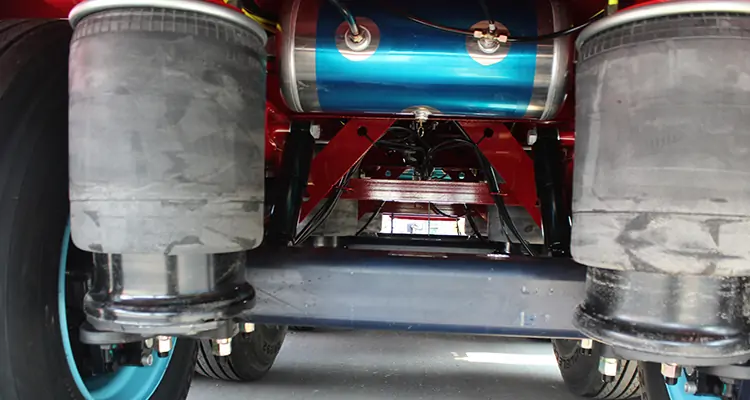

The air suspension optimizes ride comfort by automatically adjusting to road conditions, reducing vibrations and protecting cargo.

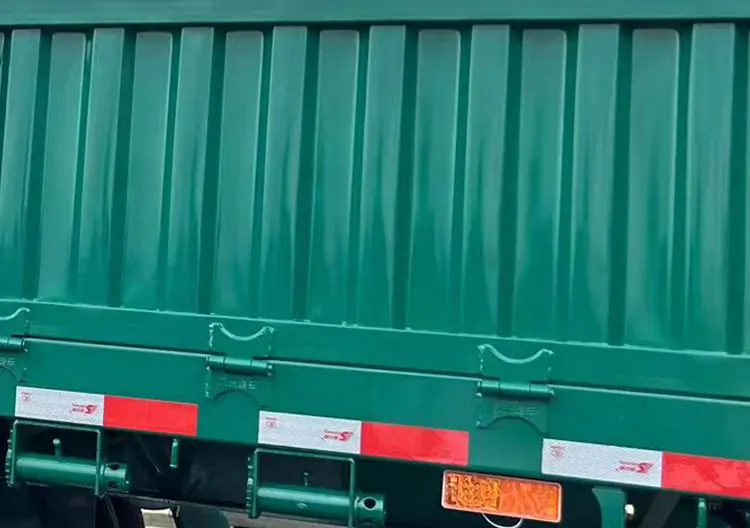

The vertically corrugated surface of this green trailer panel not only boosts structural strength but also adds a sleek, modern aesthetic to the vehicle’s appearance.
Production Flowchart
Design Drawings
| Dimension | 12500mm*2500mm*3050mm(1500mm sidewall high) |
| Load Capacity(T) | ≤60T |
| Axle | 3 axles, 13T/16T, FUWA/BPW brand |
| Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |
| King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Landing gear | JOST brand |
| Main beam | Height: 500mm Upper Plate: 14mm Middle Plate: 8mm |
| Side beam | 16mm or 18mm steel channel(material: Q235steel) |
| Bottom Platform | 3mm-thick checkered plate |
| Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
| ABS | Optional |
| Valve | WABCO valve |
| Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
