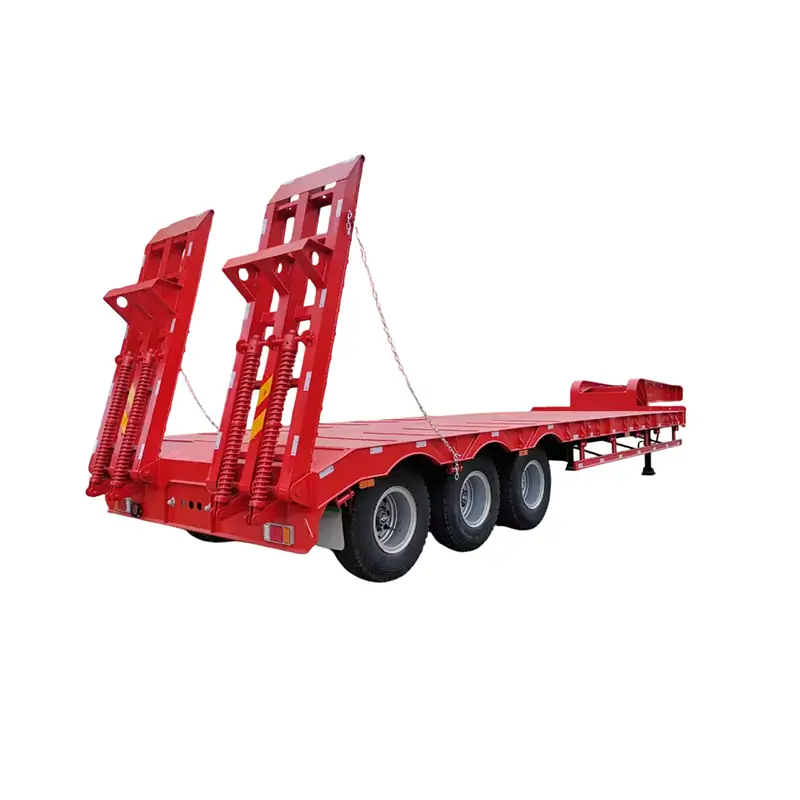

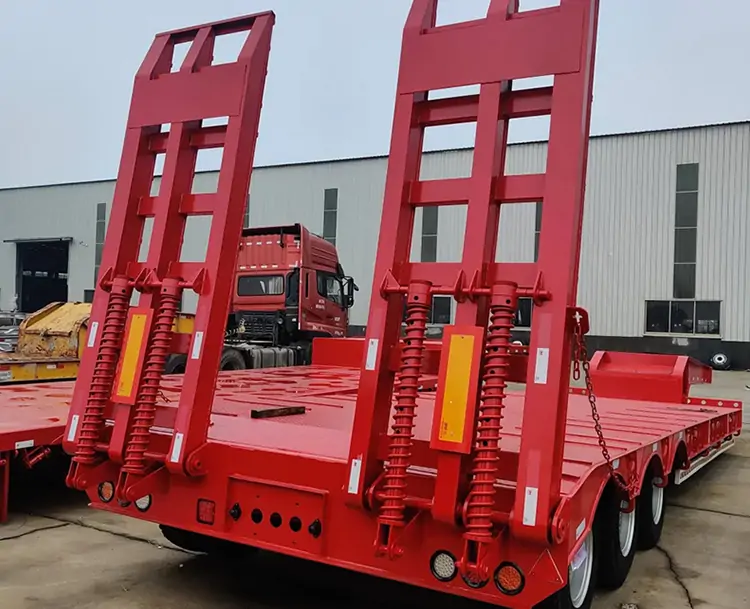

3 Axle Low Bed Semi Trailer for Excavating Machinery Transport
Low Boy Semi-Trailer 3/4/5 Axle Low Bed Ramp Tractor Trailer 80-120 Tons Sale Truck Trailers 10100-13000USD

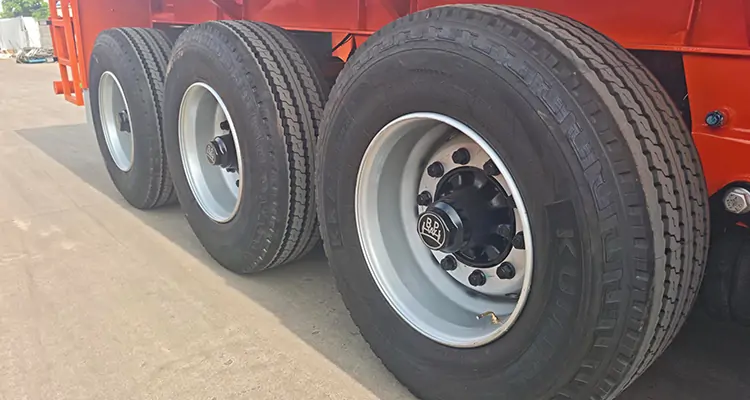

The large – sized tires with deep treads offer excellent traction and stability, enabling the trailer to handle various road conditions with ease.

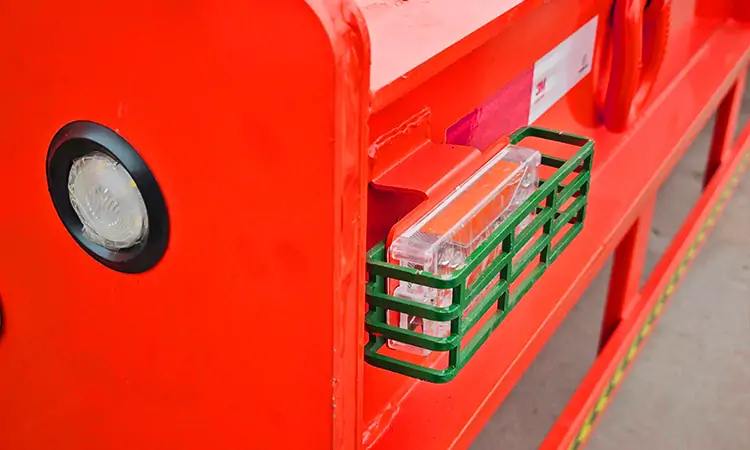

The green protective grid over the electrical component ensures safety by preventing accidental contact and damage, while also allowing easy visual inspection.

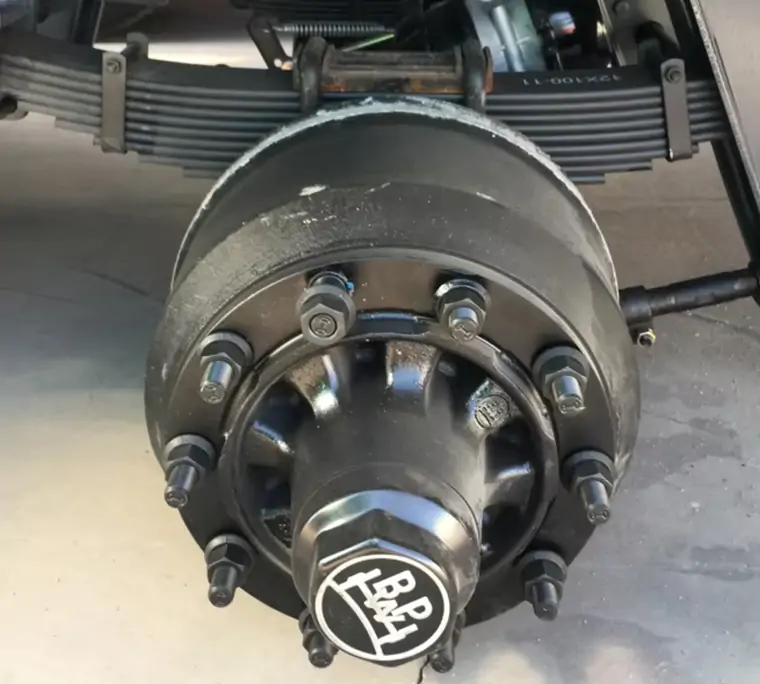

The heavy – duty wheel hub with multiple bolts provides a secure connection, enhancing the overall durability and reliability of the trailer’s wheel assembly.
Design Drawings
| Name | Lowbed Trailer |
| Overall Size | 13000*3000*1760mm, customization |
| Loading weight (KG) | 80-120Tons |
| Axle | 13T/16T/20T, FUWA/BPWbrand |
| Suspension system | Mechanical/Air suspension |
| Main beam | MT700, Beam height 500mm, top plate 16mm, bottom plate 18mm, middle plate 10mm. customization |
| Flat platform | 3mm diamond plate |
| Tires | 8.25R20 with 1 spare tyre |
| Option:12.00R20 radial tyre; 11R22.5 diagonal tyre; 8.25R16 radial tyre | |
| Ladder | Spring ladder |
| Spare wheel holder | 1 |
| Toolbox | 1 |
| Landing gear | Standard 28 Tons |
| Side guard | Standard |
| Paint color | Custom (Polyester paint) |
| Packaging | Waxing before departure |
