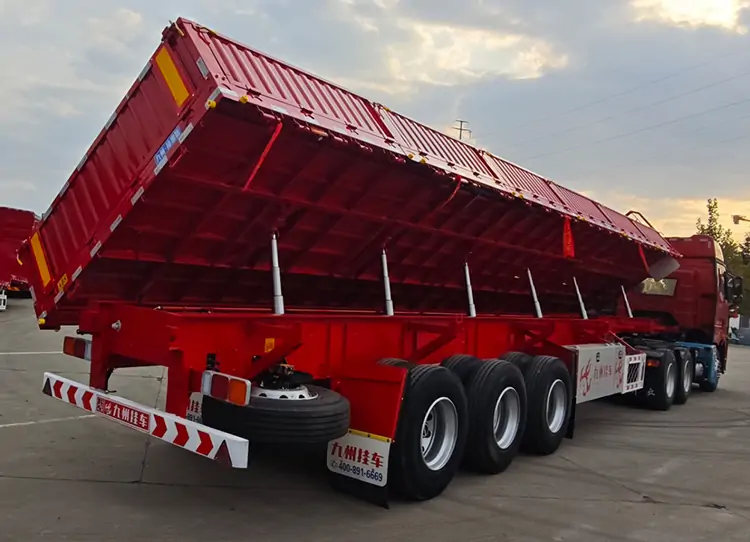

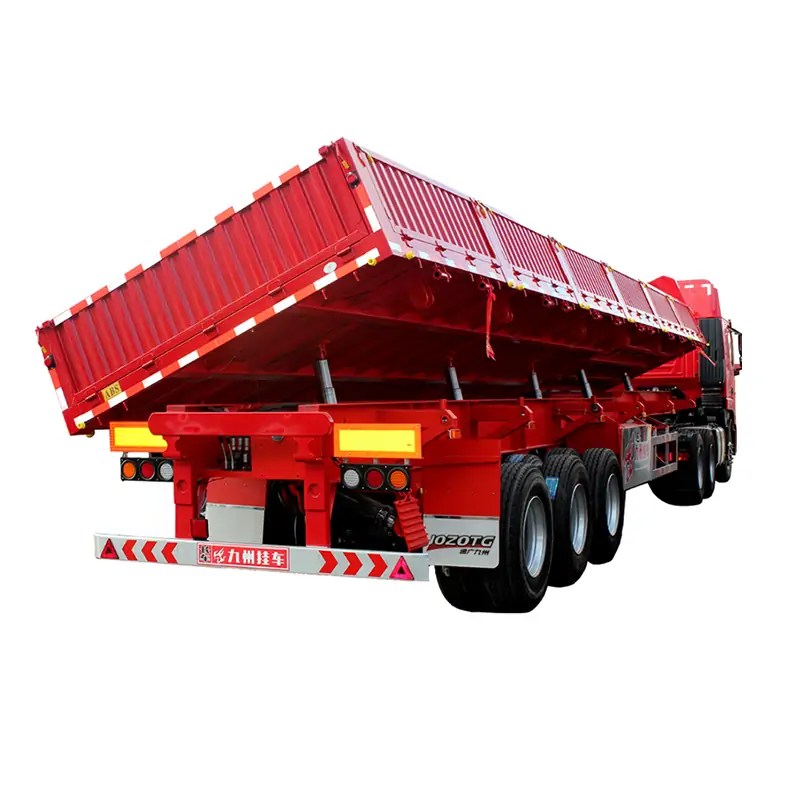

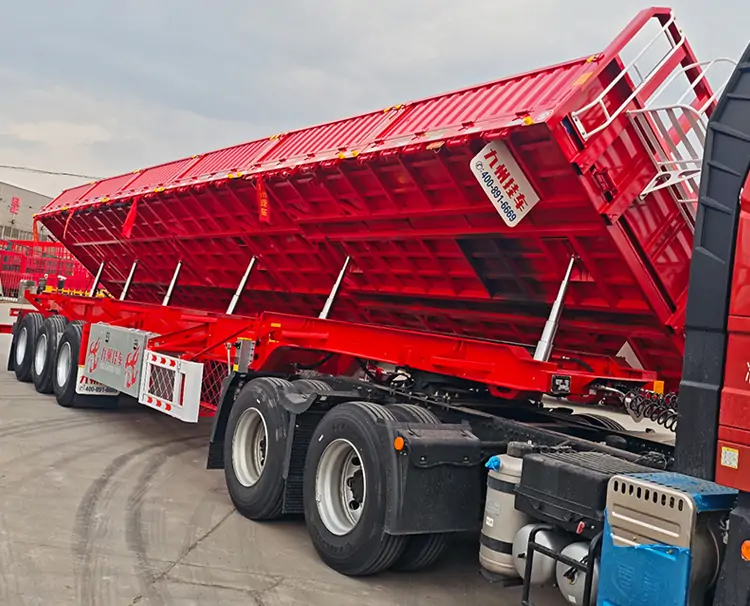

The side tipper trailer is widely used in various industries such as construction, mining, and agriculture. In construction sites, it can efficiently transport and unload construction materials like sand or gravel. In mining operations, it can handle large quantities of ore or rocks, making it an invaluable asset.
High Quality Customization Hot Sale Sidewall Grain Dump 3/4 Axle Side Tipper Trailer Side Dumping Semi Trailer for Use
Core Components
Chassis Double-layer beam, high hardness, highload and low weight
12.00-20 bias tire, 12.00R20 radial tire. 12R22.5 and 315/80R22.5 tubeless tire
FUWA/BPW/BONVO Various brands can chooseCan be customized
With effective unloading ability, Dump Semi Trailer is the best to transport bulk granular cargo such as coal, ore, construction materials, etc.
Core Components
| Name | Side Dump Semi Trailer |
| Outside Dimension(L*W*H) (mm) | 10000-14000*2550*2900mm (customizable) |
| Max Loading Capacity (kg) | 30000-100000 （customizable) |
| Tare Weight | 7-9 Tons |
| Main Beam | Q345B manganese plates, automaticsubmerged arc welded |
| Upper:16mm, Lower:16mm, Mid web:8mm | |
| The height of beam:500mm, | |
| Floor | Steel sheet 4mm thickness or diamond plate |
| Tyre Specifications | 11.00R20/12R22.5 |
| Rim | 8.0/9.0*12/16 pieces |
| Axle | 13 Tons Fuwa / BPW/JOZOTG/Other |
| Leaf-spring | 90mm*13/16mm*10 pieces |
| Suspension | Mechanical/ Air suspension |
| King Pin | #50(2″)/#90(3.5″), JOST/Other Brand |
| Landing Gear | 28000 kg,JOST |
| Spare Wheel Carrier | One set of spare wheel carrier |
| Electrical System | 24V, 7core socket, lights according toEuropean standards. |
| Tool Box | Steel/aluminum(1+0.5m) |
