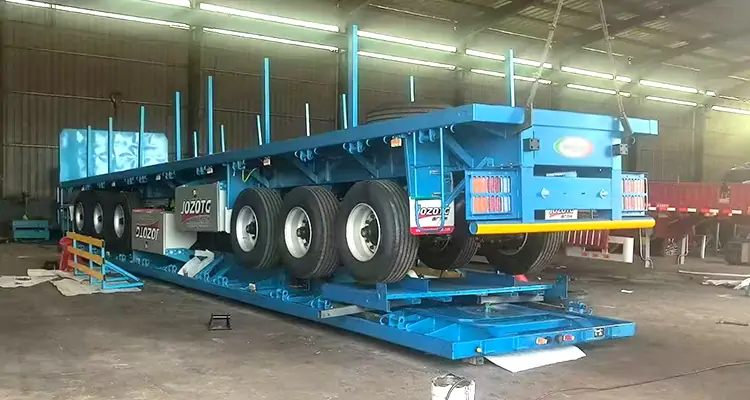

Equipped with Plug-in Column Carbon Steel 3-axis 40 Foot Wooden Log Steel Transport Flatbed Trailer
Shipping 40/45 Feet Container Transport Flat Bed Trailer 3 Axle Flatbed Semi Trailer 40ft Price
Core Components
The structure of the rear part of the flatbed is designed with multiple circular and rectangular cut – outs. These cut – outs not only reduce the overall weight of the trailer but also facilitate easy access for maintenance and inspection of the rear components, improving operational efficiency.

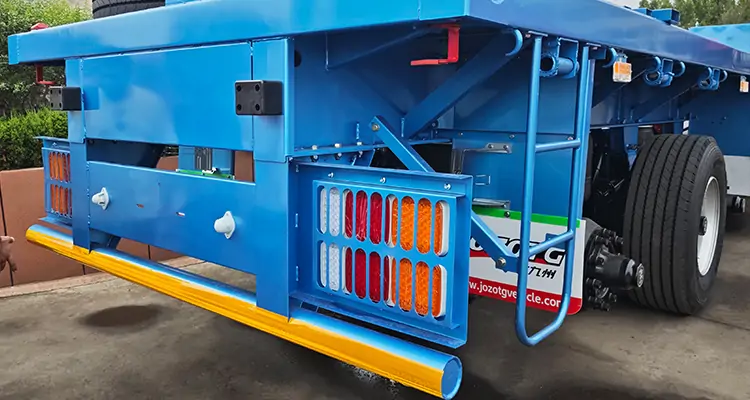

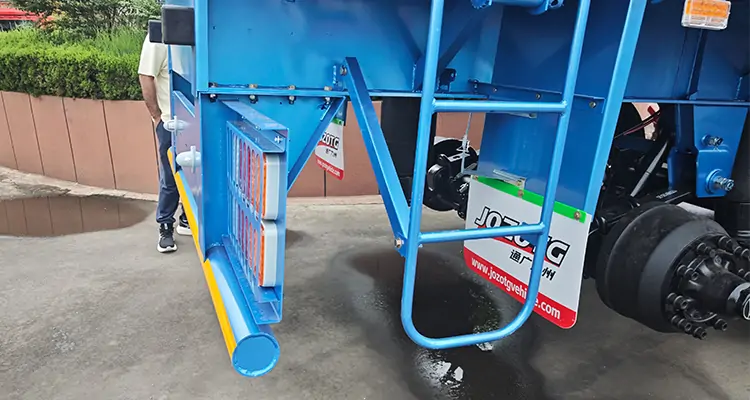

The rear under – run protection device features a grid – like structure with high – visibility reflective elements integrated. This design not only provides effective protection against under – ride accidents but also greatly enhances the visibility of the trailer’s rear end, especially in low – light conditions, thus improving overall road safety.

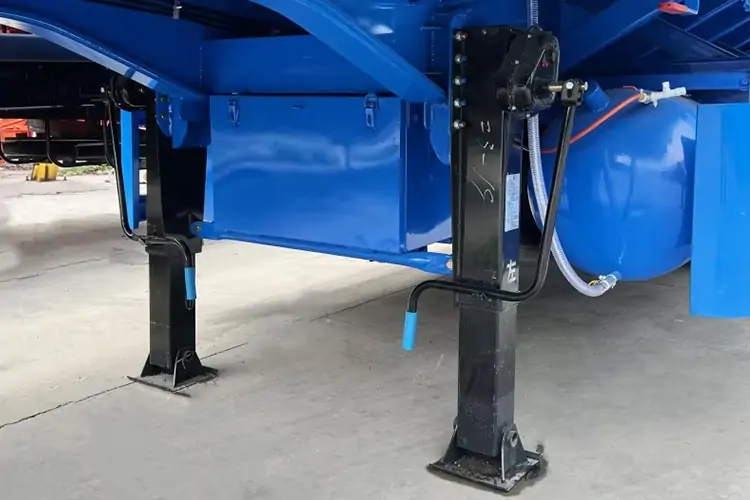

The landing gear is constructed with high – strength materials and features a robust design. Its sturdy structure ensures stable support for the semi – trailer when it is detached from the tractor, preventing tilting or sinking, and providing a reliable base for various parking and loading scenarios.
Production Flowchart
Design Drawings
| Overall (L*W*H) | 12500*2500*1530mm |
| Frame | Material:High strength low alloy Q345 steel |
| Main beam | Main beam height:500 mm |
| Floor | 3 mm checkered plate |
| Side beam: | 16# channel steel |
| Axle | 3*13 tons FUWA axles |
| Tire | 12R22.5 Tire,10 pcs |
| Rim | 900*22.5, 12 pcs |
| Braking System | 6 Double-chamber , Duel Line Brake System |
| Suspension | Air spring suspension |
| King Pin | 2″ (50#) or 3.5″(90#) high tensile steel bolted type |
| Landing Leg | 28T landing leg |
| Twist Lock | 4/8/10/12 pcs |
| Accessories | 1 waterproof tool box with stainless lock,2 spare tire carrier |
| Color | Any color will be available |
| Packing detail | Container ships |
