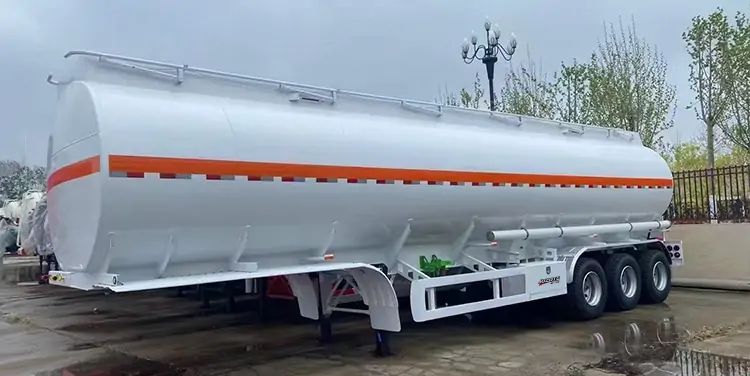

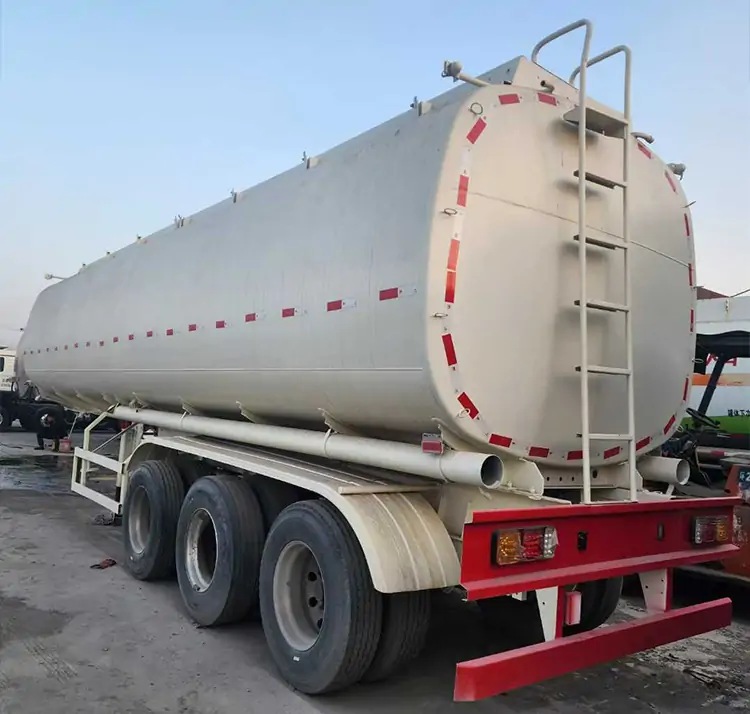

Fundamentals of Oil Tanks: Structure, Classification, and Safety Considerations

Oil tanks, as critical infrastructure for storing liquid fuels, play an indispensable role in industries such as petroleum, chemical engineering, and energy logistics. These containers are designed to safely house crude oil, refined products, and other flammable liquids while minimizing environmental risks. This article explores the structural principles, classification systems, and safety features of modern oil tanks, drawing on engineering practices and industry standards.

Structural Design Principles

1. Cylindrical Geometry for Load Distribution

The most common oil tank design features a vertical cylindrical shape with a hemispherical or conical roof. This configuration optimizes stress distribution under hydrostatic pressure from stored liquids. For example, a 50,000-cubic-meter tank storing diesel fuel experiences varying pressure gradients from top to bottom, with the base plate bearing the highest load. Engineers calculate wall thickness using the formula:

t=2[σ]⋅ϕH⋅D⋅γ​+C

where H is liquid height, D is tank diameter, γ is fluid density, [σ] is allowable stress, ϕ is the weld joint efficiency factor, and C accounts for corrosion allowance. This ensures structural integrity even during seismic events or extreme weather.

2. Multi-Layered Bottom Construction

The tank base consists of three critical layers:

• Asphalt Sand Layer: An 80–100 mm thick mixture of 60# petroleum asphalt and medium-grained sand forms a waterproof barrier.
• Sand Cushion: A 200–250 mm layer of compacted sand with ≤5% silt content distributes loads evenly and prevents groundwater intrusion.
• Steel Plate Foundation: The bottom plate, typically 6–12 mm thick for large tanks, is welded with overlapping seams and coated with anti-corrosion paint. Edge plates are thickened to 16–25 mm to resist bending stresses.

3. Floating Roof Mechanism

For volatile liquids like gasoline, floating roof tanks reduce vapor emissions by 95% compared to fixed-roof designs. The roof consists of:

• Single/Double Deck Panels: Lightweight aluminum or steel decks float on the liquid surface, adjusting to volume changes.
• Peripheral Seals: Flexible rubber or mechanical seals between the roof and tank wall prevent vapor leakage.
• Drainage System: Central drains ensure rainwater does not accumulate on the roof, which could cause sinking.

Classification Systems

1. By Installation Position

• Aboveground Tanks: Cost-effective for large capacities (1,000–200,000 m³), but require fireproofing and spill containment measures.
• Underground Tanks: Buried ≥0.5 m below ground, these offer explosion resistance and thermal stability but cost 30–50% more to construct.
• Semi-Underground Tanks: Partially buried designs (e.g., 40% of height underground) balance accessibility and safety, commonly used at gas stations.

2. By Structural Type

• Fixed-Roof Tanks: Ideal for non-volatile oils like diesel, featuring cone-shaped roofs with pressure-vacuum valves.
• Floating-Roof Tanks: Essential for volatile fuels, with single-deck (cost-effective) or double-deck (better insulation) variants.
• Spherical Tanks: Used for liquefied petroleum gas (LPG) storage, withstanding pressures up to 3 MPa.

3. By Material

• Steel Tanks: Dominate the market due to durability and recyclability. High-strength steels (e.g., 16MnR) are used for large tanks to reduce wall thickness.
• Concrete Tanks: Pre-stressed concrete designs resist corrosion and seismic forces, suitable for heavy oils like asphalt.
• Flexible Tanks: Military-grade fabric tanks (e.g., polyurethane-coated nylon) offer rapid deployment for temporary fuel storage in disaster zones.

Safety and Environmental Protection

1. Corrosion Prevention

• Cathodic Protection: Sacrificial anodes or impressed current systems mitigate electrochemical corrosion in underground tanks.
• Coating Systems: Multi-layer epoxy coatings (e.g., 300 μm thickness) with glass flake reinforcement extend service life to 20+ years.
• Cathodic Disbondment Testing: Regular inspections ensure coating adhesion remains above 85% even after thermal cycling.

2. Leak Detection Systems

• Double-Wall Design: Secondary containment walls with interstitial monitoring detect leaks within 24 hours.
• Vapor Monitoring: Photoionization detectors (PID) continuously sample air for volatile organic compounds (VOCs).
• Acoustic Emission Testing: Sensors identify micro-cracks in tank walls before catastrophic failure occurs.

3. Emergency Response Protocols

• Fire Suppression: Foam injection systems (e.g., AFFF) and fireproof cladding (e.g., 50 mm rockwool) limit fire spread.
• Spill Containment: Dikes surrounding aboveground tanks must hold 110% of the largest tank’s volume.
• Evacuation Plans: Automated alarms trigger when vapor concentrations reach 20% of the lower explosive limit (LEL).

Industry Standards and Innovations

Modern oil tank design adheres to global standards such as:

• API 650: American Petroleum Institute’s specification for welded steel tanks up to 150 feet in diameter.
• EN 14015: European standard for vertical cylindrical tanks with thermally insulated designs.
• GB 50128: Chinese code requiring tanks to withstand 7-degree seismic intensity.

Emerging technologies include:

• Smart Sensors: Internet-of-Things (IoT) devices monitor temperature, pressure, and corrosion in real time.
• 3D Printing: Additive manufacturing enables complex geometries for customized tank components.
• Biodegradable Liners: Plant-based polymers reduce environmental impact during tank decommissioning.

Conclusion

Oil tanks represent a fusion of engineering precision and safety-critical design. From the cylindrical stress distribution principles to floating roof innovations, each component serves to balance operational efficiency with risk mitigation. As industries transition toward sustainable energy, advancements in materials science and digital monitoring will further enhance the reliability of these essential infrastructure assets. Understanding their fundamentals ensures safer fuel storage and transportation, safeguarding both human lives and the environment.
