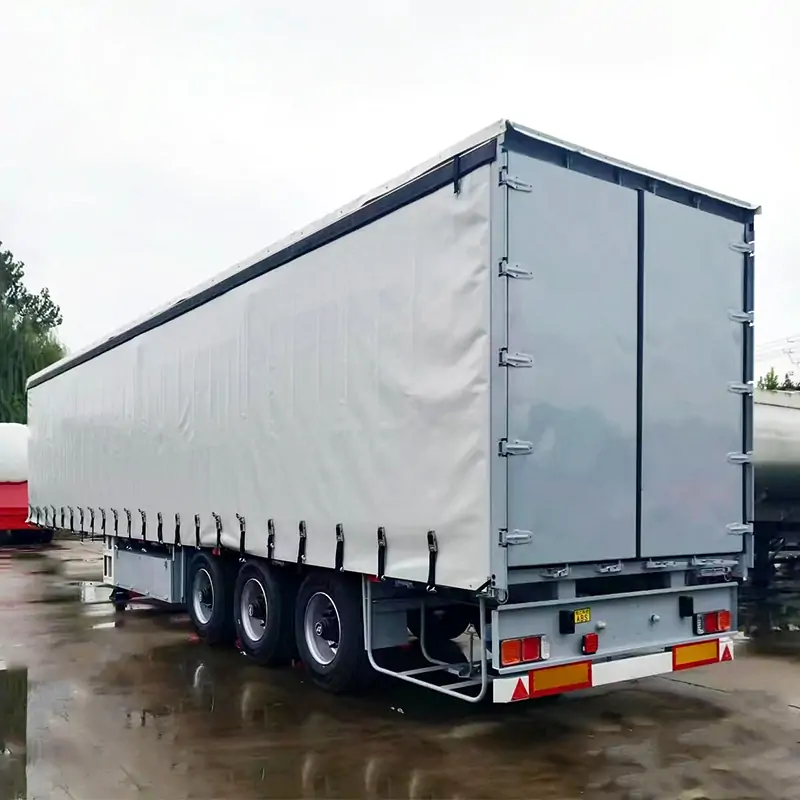

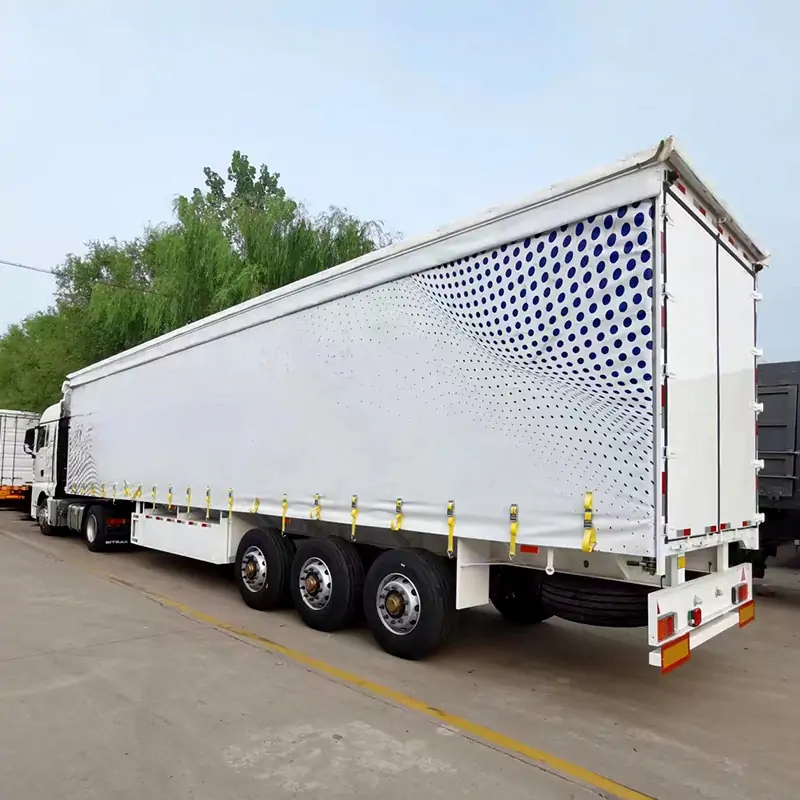

Side curtain semi-trailers, a specialized variant of enclosed cargo transport vehicles, have gained prominence in global logistics due to their lightweight design, high loading efficiency, and versatile functionality. Originating in Europe, these trailers now account for over 70% of Australia’s logistics fleet and are increasingly adopted in China’s coastal regions for specific high-value cargo segments.
Core Design Features
- Lightweight Construction
Side curtain semi-trailers replace traditional steel panels with high-tensile aluminum alloy frames and soft curtain materials. A standard 14.6-meter-long, 2.55-meter-wide model weighs under 6,000 kg, reducing tare weight by 30–40% compared to steel-bodied trailers. This allows for an additional 3–4 tons of payload per trip, directly enhancing transportation efficiency. - Flexible Loading/Unloading
The soft curtains, supported by sliding rails and lockable mechanisms, can be fully retracted to expose the entire side and top compartments. Forklifts can operate simultaneously from multiple angles, cutting loading time to under 10 minutes per trip—a 50% improvement over conventional enclosed trailers. This design is ideal for palletized goods, automotive parts, and beverages, where rapid turnover is critical. - Enhanced Safety Systems
Three-layer protection includes:- Adjustable Stabilizing Posts: Aluminum or wooden crossbars create a grid-like framework to prevent cargo shifting.
- Anti-Roll Chassis: Specialized grooves secure cylindrical loads like steel coils or paper rolls, reducing重心 by 20%.
- Tensioning Devices: Lockable hooks and winches ensure cargo remains firmly anchored during transit.
Tests show side curtain trailers withstand impacts equivalent to 80 km/h collisions without structural failure, matching the safety standards of steel-bodied units.
Industry Applications
- High-Value Cargo: Electronics, pharmaceuticals, and luxury goods benefit from the enclosed, dust/waterproof compartments.
- Multimodal Transport: Standardized dimensions align with container specifications, enabling seamless transfers between ships, trains, and trucks.
- Specialized Freight: Dedicated models for steel coils (with anti-roll slots) and beverages (with pallet-locking systems) dominate niche markets.
Challenges in China
Despite their advantages, side curtain trailers face hurdles in China’s logistics landscape:
- High Initial Cost: Premium components like air suspensions and aluminum frames raise prices by 30–50% versus traditional models.
- Maintenance Complexity: Curtain materials require regular replacement (every 5–8 years), and precision rails demand skilled upkeep.
- Operational Constraints: Best suited for fixed-route, high-frequency operations, they struggle in fragmented, low-volume zero-load markets.
Future Outlook
As China’s logistics industry prioritizes efficiency and sustainability, side curtain trailers are poised for growth in express delivery, cold chain, and cross-border transport. Advances in durable curtain materials and modular designs will furt
